Project Overview

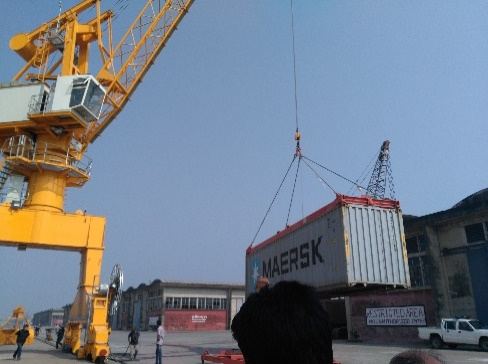

Chittagong Port Authority (CPA) operates a major government-owned port in Chattogram, Bangladesh, serving as an important maritime gateway to South Asia. As part of the port's modernization project, ISKAR supplied one level-luffing slewing crane designed for hook-duty operations to CPA's Marine Engineering Works Department.

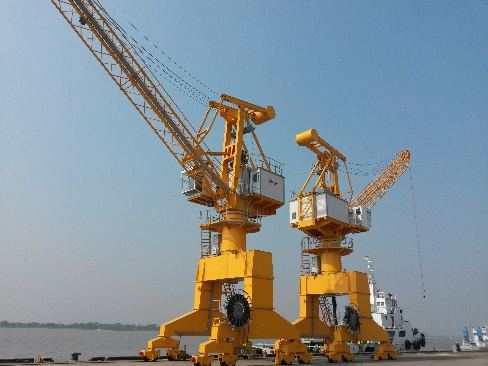

Shipyard Crane at Chittagong Port
Technical Specifications

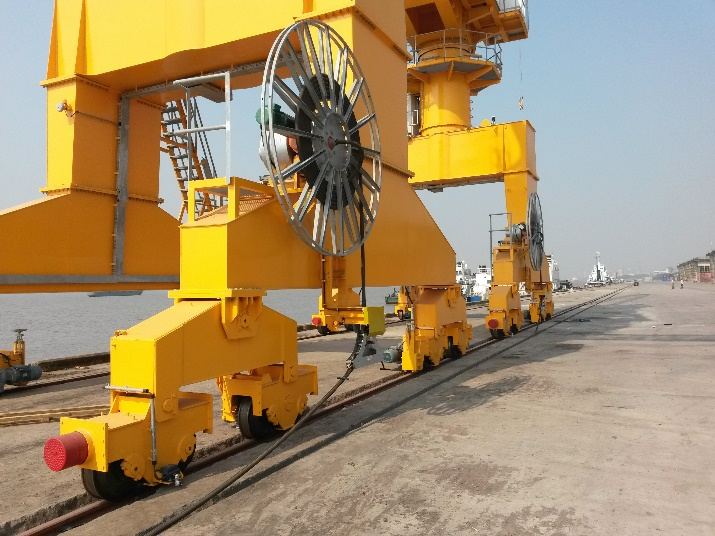

| Rail Gauge of Portal Track | 6.0 m |
| Hoisting Capacity | 6t x 25 … 7.5 m |
| Wheels per Corner | 4 x Ø500 mm |
| Total Weight | 90 tons |
| Hoisting Speed | 0 – 60/90 m/min |
| Travelling Speed of Portal | 0 – 20 m/min |
| Slewing Speed | 0 – 1.5 rpm |

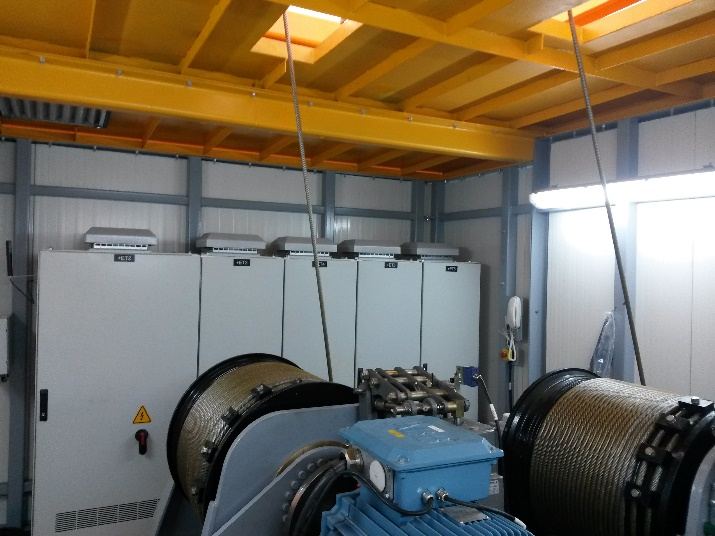

| Electric System | 400V 3ph 50Hz, inverter duty for all movements |
| Stability | SWL x 1.6 |
| Static Load | SWL x 1.5 |
| Dynamic Load | SWL x 1.25 |
