Project Overview
Mongla Port Authority (MPA) operates a government-owned port in Bagerhat, Khulna, serving as an important maritime gateway to the region. As part of the port expansion and modernization project, ISKAR supplied two level-luffing slewing cranes designed for grab-duty operations.

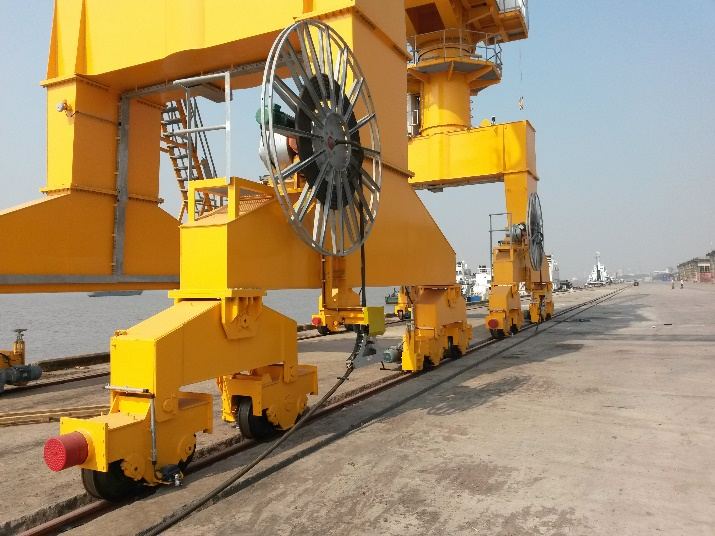

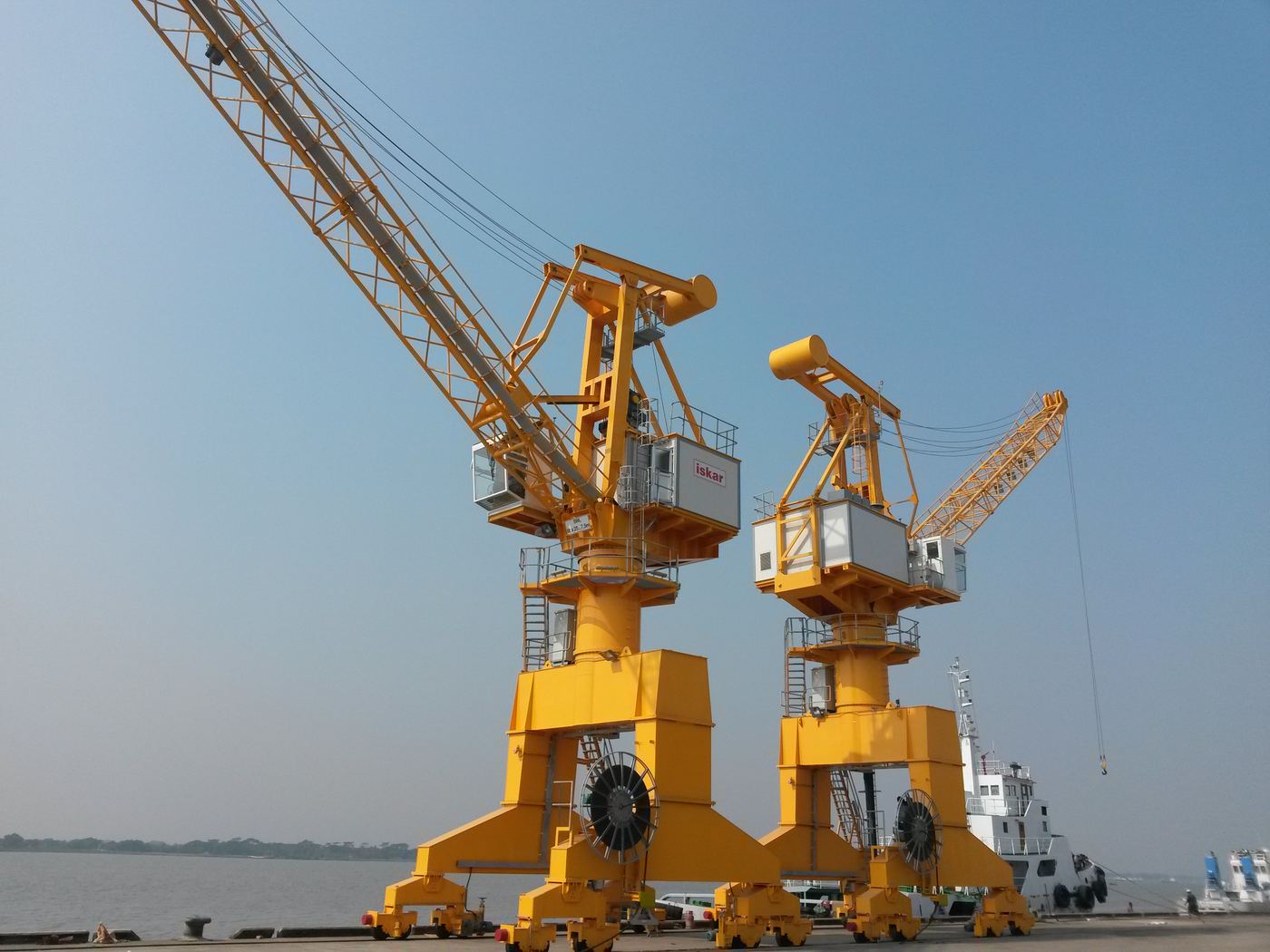

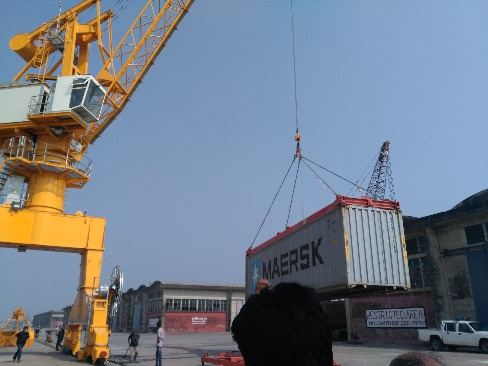

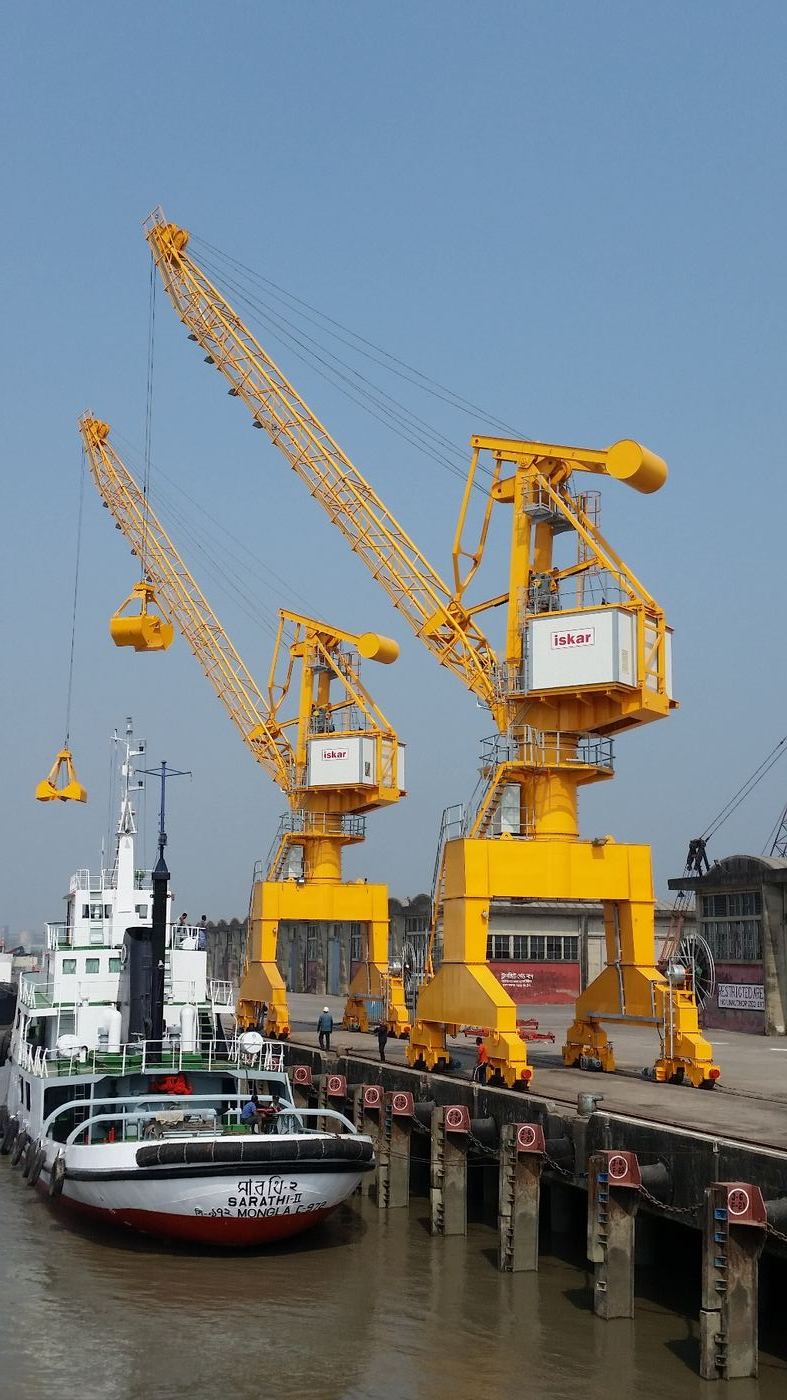

Port Crane at Mongla Port
Technical Specifications
| Rail Gauge of Portal Track | 6.0 m |
| Hoisting Speed | 0 – 60/90 m/min |
| Travelling Speed of Portal | 0 – 20 m/min |
| Slewing Speed | 0 – 1.5 rpm |
| Wheels per Corner | 4 x Ø500 mm |
| Hoisting Capacity | 6t x 25 ... 7.5 m |
| Safety Factor (Stability) | SWL x 1.6 |
| Safety Factor (Static Load) | SWL x 1.5 |
| Safety Factor (Dynamic) | SWL x 1.25 |
| Electric System | 400V 3ph 50Hz, all movements with inverter duty |
| Total Weight | 90 tons |
